Windows10基于Indirect Display Driver的虚拟显示器开发

虚拟显示器，在如今的串流和远程的互联网应用中，有着诸多用途。它不仅可以帮助我们进行多桌面拓展，能够帮助我们极大提高的利用虚拟机的效率，以及在公有云的租借的服务器，再结合虚拟磁盘映射，做到文件同步，妥妥的多了一台生产力电脑。

在如今如火如荼AR/XR领域，为拓展应用生态，虚拟现实器的技术也有着极其重要的作用。如下可以看到在VR场景里的多个窗口或者桌面流的应用

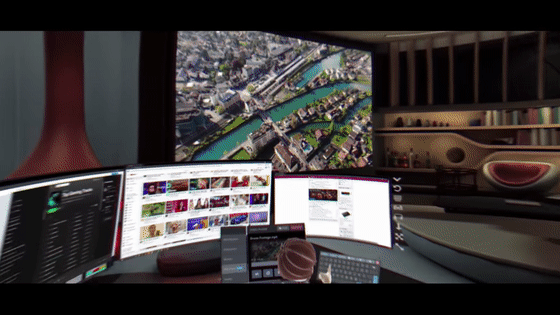

在VR中串流多个工作桌面流

前文我们探讨了在Win7系统下面基于WDDM HOOK的虚拟显示器开发技术；在微软更新了Windows 10 1067版本之后，Windows支持了显卡过滤框架，通过Indirect Display Driver（IDD）可以很简单的就完成虚拟显示器的开发。

在通过Indirect Display Driver可以生成一个虚拟的显示适配器，针对这个适配器模拟一个显示器设备的插入，就可以实现虚拟显示器的功能了。

在这一篇文章，我们分析Indirect Display Driver的技术原理和虚拟显示器的开发流程。

1. 技术概述

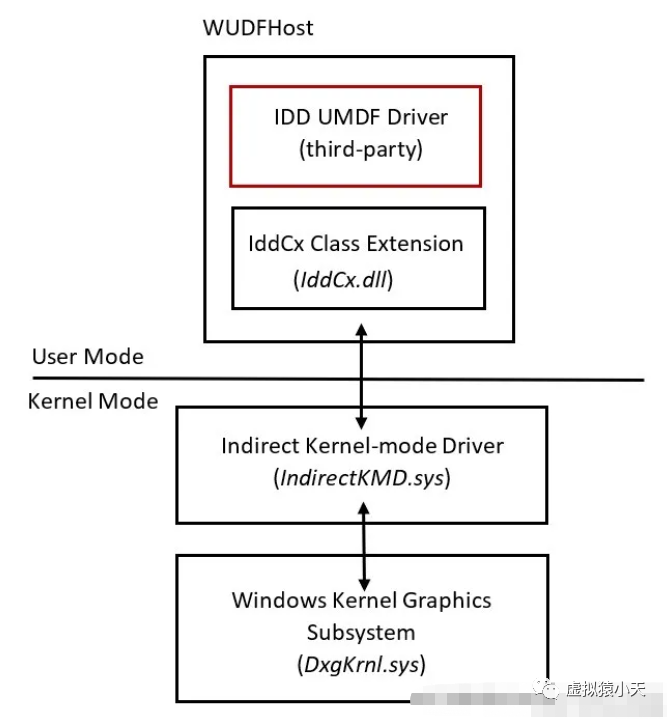

IDD是一个基于WDF的用户层驱动程序，基本架构如下：

• IDDCX_ADAPTER表示逻辑显示适配器的对象。
• IDDCX_MONITOR表示连接的显示器的对象。
• IDDCX_SWAPCHAIN表示桌面图像的交换链。

extern "C" NTSTATUS DriverEntry(
    PDRIVER_OBJECT  pDriverObject,
    PUNICODE_STRING pRegistryPath
)
{
    WDF_DRIVER_CONFIG Config;
    NTSTATUS Status;

    WDF_OBJECT_ATTRIBUTES Attributes;
    WDF_OBJECT_ATTRIBUTES_INIT(&Attributes);

    WDF_DRIVER_CONFIG_INIT(&Config,
        IddSampleDeviceAdd
    );

    Status = WdfDriverCreate(pDriverObject, pRegistryPath, &Attributes, &Config, WDF_NO_HANDLE);
    if (!NT_SUCCESS(Status))
    {
        return Status;
    }

    return Status;
}

NTSTATUS IddSampleDeviceAdd(WDFDRIVER Driver, PWDFDEVICE_INIT pDeviceInit)
{
    NTSTATUS Status = STATUS_SUCCESS;
    WDF_PNPPOWER_EVENT_CALLBACKS PnpPowerCallbacks;

    UNREFERENCED_PARAMETER(Driver);

    WDF_PNPPOWER_EVENT_CALLBACKS_INIT(&PnpPowerCallbacks);
    PnpPowerCallbacks.EvtDeviceD0Entry = IddSampleDeviceD0Entry;
    WdfDeviceInitSetPnpPowerEventCallbacks(pDeviceInit, &PnpPowerCallbacks);

    IDD_CX_CLIENT_CONFIG IddConfig;
    IDD_CX_CLIENT_CONFIG_INIT(&IddConfig);

    IddConfig.EvtIddCxDeviceIoControl = IddSampleIoDeviceControl;

    IddConfig.EvtIddCxAdapterInitFinished = IddSampleAdapterInitFinished;

    IddConfig.EvtIddCxParseMonitorDescription = IddSampleParseMonitorDescription;
    IddConfig.EvtIddCxMonitorGetDefaultDescriptionModes = IddSampleMonitorGetDefaultModes;
    IddConfig.EvtIddCxMonitorQueryTargetModes = IddSampleMonitorQueryModes;
    IddConfig.EvtIddCxAdapterCommitModes = IddSampleAdapterCommitModes;
    IddConfig.EvtIddCxMonitorAssignSwapChain = IddSampleMonitorAssignSwapChain;
    IddConfig.EvtIddCxMonitorUnassignSwapChain = IddSampleMonitorUnassignSwapChain;

    Status = IddCxDeviceInitConfig(pDeviceInit, &IddConfig);
    if (!NT_SUCCESS(Status))
    {
        return Status;
    }

    WDF_OBJECT_ATTRIBUTES Attr;
    WDF_OBJECT_ATTRIBUTES_INIT_CONTEXT_TYPE(&Attr, IndirectDeviceContextWrapper);
    Attr.EvtCleanupCallback = [](WDFOBJECT Object)
    {
        auto* pContext = WdfObjectGet_IndirectDeviceContextWrapper(Object);
        if (pContext)
        {
            pContext->Cleanup();
        }
    };

    WDFDEVICE Device = nullptr;
    Status = WdfDeviceCreate(&pDeviceInit, &Attr, &Device);
    if (!NT_SUCCESS(Status))
    {
        return Status;
    }

    Status = IddCxDeviceInitialize(Device);

    auto* pContext = WdfObjectGet_IndirectDeviceContextWrapper(Device);
    pContext->pContext = new IndirectDeviceContext(Device);

    return Status;
}

• IddSampleDeviceD0Entry表示设备进入工作电源状态，在这里我们将会创建IDDCX_ADAPTER适配器对象。
• IddSampleAdapterInitFinished由于适配器创函数IddCxAdapterInitAsync是一个异步的过程，因此这个函数表示适配器初始化完成的函数。
• IddSampleParseMonitorDescription，IddSampleMonitorGetDefaultModes和IddSampleMonitorQueryModes是分别对于不同场景下面模式集合的处理。
• IddSampleMonitorAssignSwapChain桌面图片交换链的创建回调函数。

void IndirectDeviceContext::Plugin(UINT ConnectorIndex)
{

    WDF_OBJECT_ATTRIBUTES Attr;
    WDF_OBJECT_ATTRIBUTES_INIT_CONTEXT_TYPE(&Attr, IndirectMonitorContextWrapper);

    // In the sample driver, we report a monitor right away but a real driver would do this when a monitor connection event occurs
    IDDCX_MONITOR_INFO MonitorInfo = {};
    MonitorInfo.Size = sizeof(MonitorInfo);
    MonitorInfo.MonitorType = DISPLAYCONFIG_OUTPUT_TECHNOLOGY_HDMI;
    MonitorInfo.ConnectorIndex = ConnectorIndex;

    MonitorInfo.MonitorDescription.Size = sizeof(MonitorInfo.MonitorDescription);
    MonitorInfo.MonitorDescription.Type = IDDCX_MONITOR_DESCRIPTION_TYPE_EDID;
    if (ConnectorIndex >= ARRAYSIZE(s_SampleMonitors))
    {
        MonitorInfo.MonitorDescription.DataSize = 0;
        MonitorInfo.MonitorDescription.pData = nullptr;
    }
    else
    {
        MonitorInfo.MonitorDescription.DataSize = IndirectSampleMonitor::szEdidBlock;
        MonitorInfo.MonitorDescription.pData = const_cast<BYTE*>(s_SampleMonitors[ConnectorIndex].pEdidBlock);
    }

    CoCreateGuid(&MonitorInfo.MonitorContainerId);

    IDARG_IN_MONITORCREATE MonitorCreate = {};
    MonitorCreate.ObjectAttributes = &Attr;
    MonitorCreate.pMonitorInfo = &MonitorInfo;

    // Create a monitor object with the specified monitor descriptor
    IDARG_OUT_MONITORCREATE MonitorCreateOut;
    NTSTATUS Status = IddCxMonitorCreate(m_Adapter, &MonitorCreate, &MonitorCreateOut);
    if (NT_SUCCESS(Status))
    {
        // Create a new monitor context object and attach it to the Idd monitor object
        auto* pMonitorContextWrapper = WdfObjectGet_IndirectMonitorContextWrapper(MonitorCreateOut.MonitorObject);
        pMonitorContextWrapper->pContext = new IndirectMonitorContext(MonitorCreateOut.MonitorObject);

        // Tell the OS that the monitor has been plugged in
        IDARG_OUT_MONITORARRIVAL ArrivalOut;
        Status = IddCxMonitorArrival(MonitorCreateOut.MonitorObject, &ArrivalOut);
    }
}

3. 安装

[MyDevice_Install.NT.Services]
AddService=WUDFRd,0x000001fa,WUDFRD_ServiceInstall

[WUDFRD_ServiceInstall]
DisplayName = %WudfRdDisplayName%
ServiceType = 1
StartType = 3
ErrorControl = 1
ServiceBinary = %12%\WUDFRd.sys

[MyDevice_Install.NT.Wdf]
UmdfService=IddSampleDriver,IddSampleDriver_Install
UmdfServiceOrder=IddSampleDriver
UmdfKernelModeClientPolicy = AllowKernelModeClients

[IddSampleDriver_Install]
UmdfLibraryVersion=2.25.0
ServiceBinary=%12%\UMDF\IddSampleDriver.dll
UmdfExtensions = IddCx0102

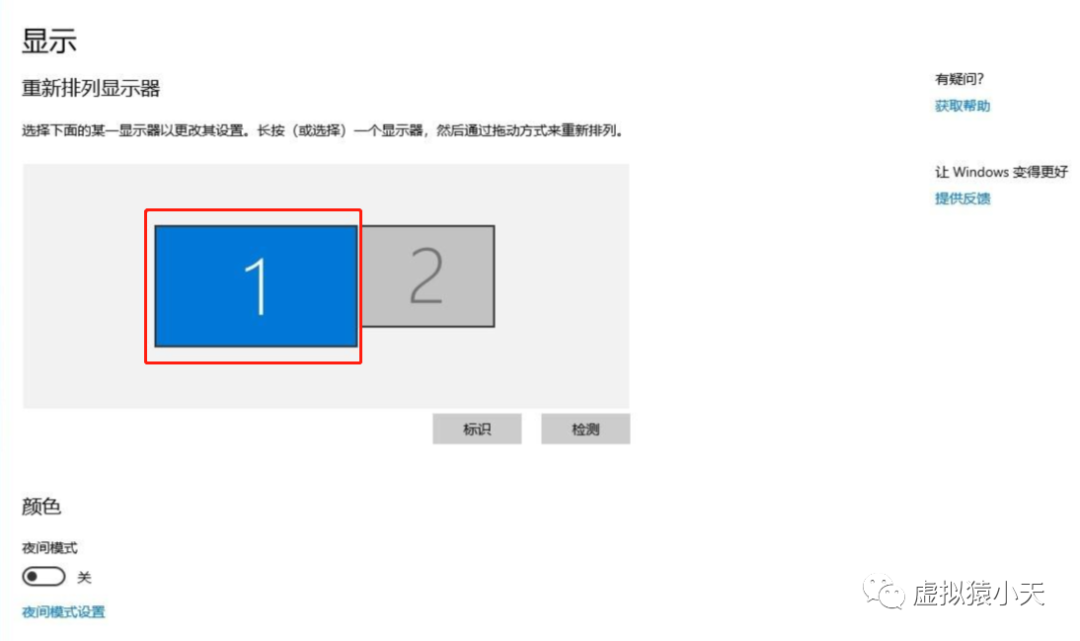

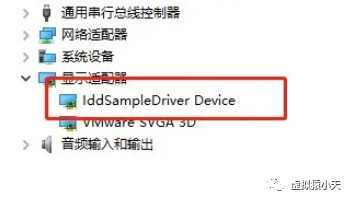

4. 实现效果
